Hatch Covers

So with the seat framing in place, and dry fitted in is now time to work on the hatch covers. Starting with a frame, and then filling the centre with shiplap joints.

The hatches will lift up by using finger holes.

Seat Framing & starboard berth

I began the installation of the starboard side berth and seats. The original plan calls for 1/2" plywood,  although I do have some leftover Birch from building the hull that could be used, it has been out in the elements for a few years under my carport. The result is some water staining and some mildew on the outer faces. The wood itself is perfectly sound, and would be fine if painted - but I am not wanting to paint the seat tops.

I decided to build the tops out of cedar, using a shiplap joints and some beefy framing underneath. Had I used the plywood, I still would have added the framing, as I am a hefty guy tipping the scales at just under 300 lbs, with some hefty friends. I don't want any sag in the seats, especially when crashing over swells or sleeping in the berth.

The purpose of the shiplap is to prevent possible warping, which wouldn't happen with plywood, but could occur with cedar planks. With the joints glued and screwed in place there should be little movement.

I installed 1 1/2 cedar framing, attached to the partial bulkheads using thickened epoxy and pocket hole screws. I know it may make a few cringe --- but I did use the exterior blue pocket screws and the Kreg jig. It made installing the framing a snap and should make for a very tight and strong enough joint since it is being covered with the 3/4" cedar.

I also installed the first of the wainscoting which helps to stiffen the centre supports.

I installed the framing and dry fitted the planks. The will be fastened using screws and thickened epoxy.

You can use hand-tools to create simple shiplap joints in the most simple of methods. You can also use a router table and rabber bit or a Dado stack on a table saw.

We used a stacked Dado blade on our table saw.

The ends and centre pieces had slightly different cuts,  but typically I alternated the rabbet - one side on the top and the other on the bottom on each board.

Enclosing in the head

 I had completed the framing with the help on my brother some time ago. This winter I decided to enclose the head with the yellow cedar. The doorway will be covered with a retractable curtain with no plans to add a door.

Backdoor Complete

I was able to finish the back door but due to the inclement weather I was not able to install it before winter. Once things warm up I will be able to  get the back door installed. I will use the same hardware as the front door, including the dead bolt. I was fortunate in that part of my Christmas gift was a knob set! Gotta like free hardware for the boat.

Front Door & Hinges

I got the door hinges, deadbolt and doorknob mounted in the front. I had no mortise hinges, but after seeing a build by Greg Wheeler, I decided to opt for marine strap hinges.

I order the brass hinges from Seadog Line. It works as smooth as Greg's. The hinges are 4" x 1 1/16" and use #8 screws.

I got pictures of the hinges in place but did not take any shots of the doorknob or the lock. I used a standard combination what others have used. I'll get some pictures up of all that soon.

The door lock and knob are from screen door hardware. I also installed the mermaid handles.

Plinthes finished and installed!

 On the "wet coast" haven't seen much wet... So got a little progress done, as much as I can anyways.

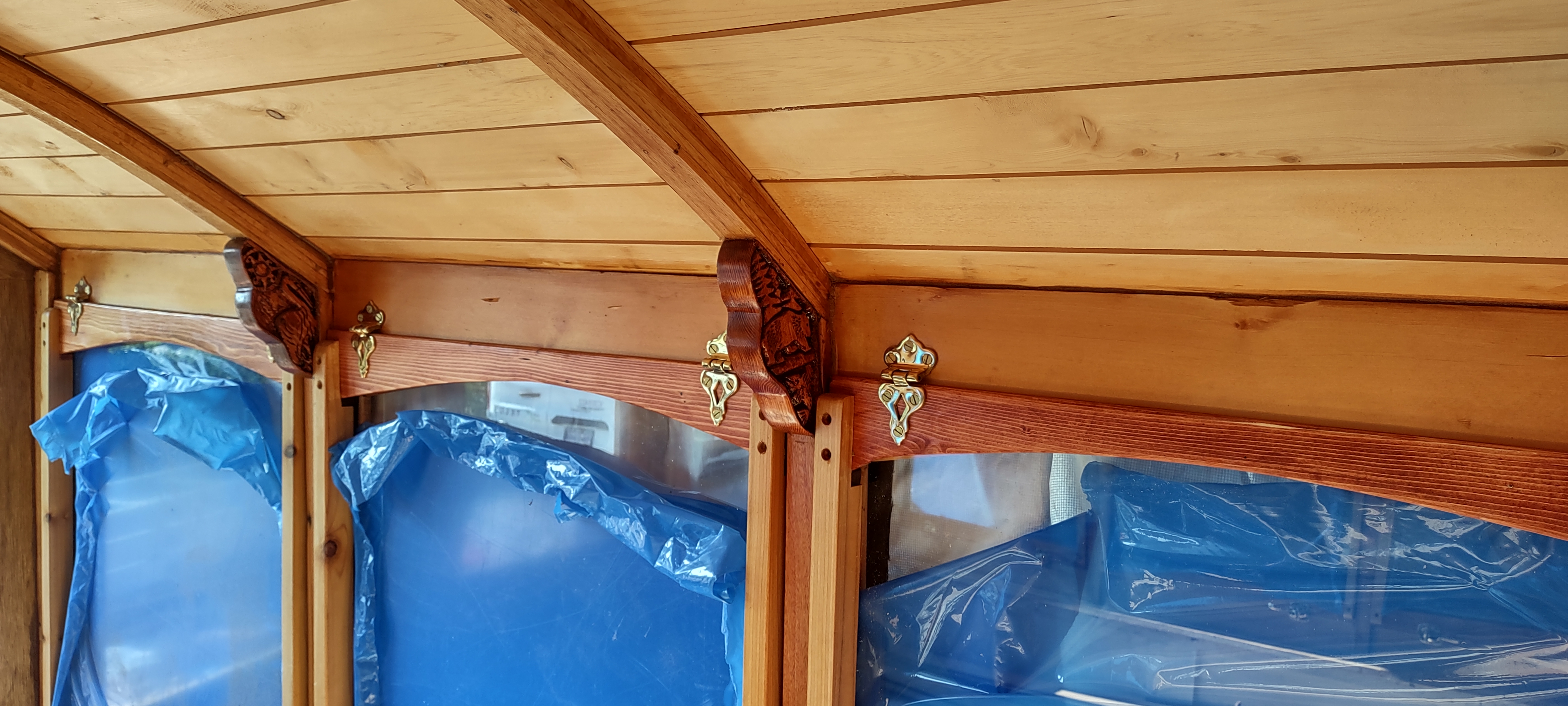

Most of the main centre roof supports are in, they are carved with west coast themes.

On Port, the humpback whale, starfish, and eagle/Seahawk catching a salmon.

On starboard, the great heron, spirit bear, and harbour seal.

They are double sided hand-carvings except for the aft.. as it is up against the bulkhead on starboard, and what will be a storage cupboard on Port.

I didn't do the carvings myself, but relied on my significant other, Karen McMahon who is a fine-arts graduate.

My role was limited to cutting shapes and finishing tasks.
